フレッシングカットカービッド挿入物

Three-edge Wear-resistant CVD Coated Milling Cutter Carbide Inserts for CNC Milling

全カテゴリー

木工業の炭化物の挿入物

連絡ください

Mr. YanMin

sales_1@santoncc.com

+008613540898385

今連絡してください

Three-edge Wear-resistant CVD Coated Milling Cutter Carbide Inserts for CNC Milling

ブランド名:	Santon
モデル番号:	カスタマイズ可能
MOQ:	50
価格:	negotiable
パッケージの詳細:	中プラスチックの箱および外でカートン
支払条件:	L/C、T/T、ウェスタンユニオン

起源の場所:

K05-K10

グルーブタイプ:

荒加工・仕上げ加工

エイリアス:

工業用カッターナイフ

黄金黄色オーダーメイド

鋼、ステンレス鋼、鋳鉄

サービス:

の後販売法サービス

コーティング:

ステンレス鋼荒加工CNC超硬インサート

供給の能力:

1ヶ月あたりの2，000,000

ハイライト:

Three-edge Milling Cutter Carbide Inserts

Wear-resistant Carbide Inserts

CVD Coated CNC Milling Inserts

製品説明

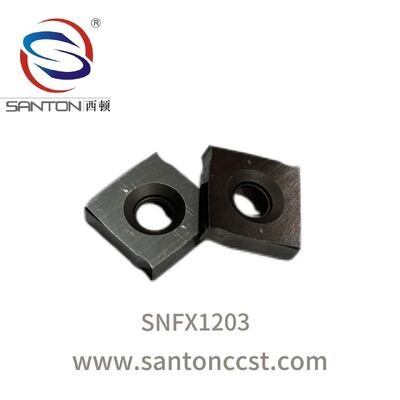

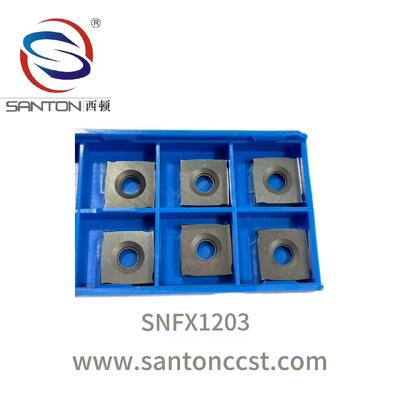

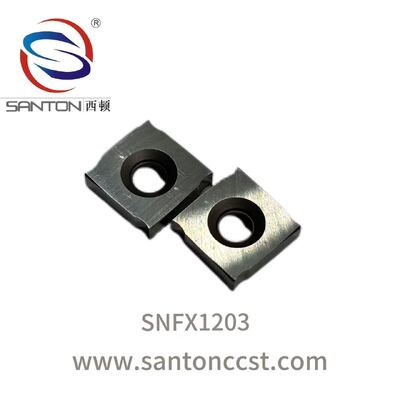

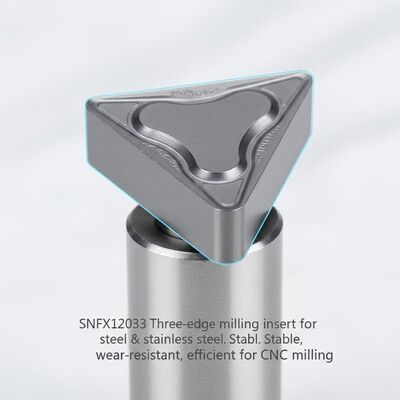

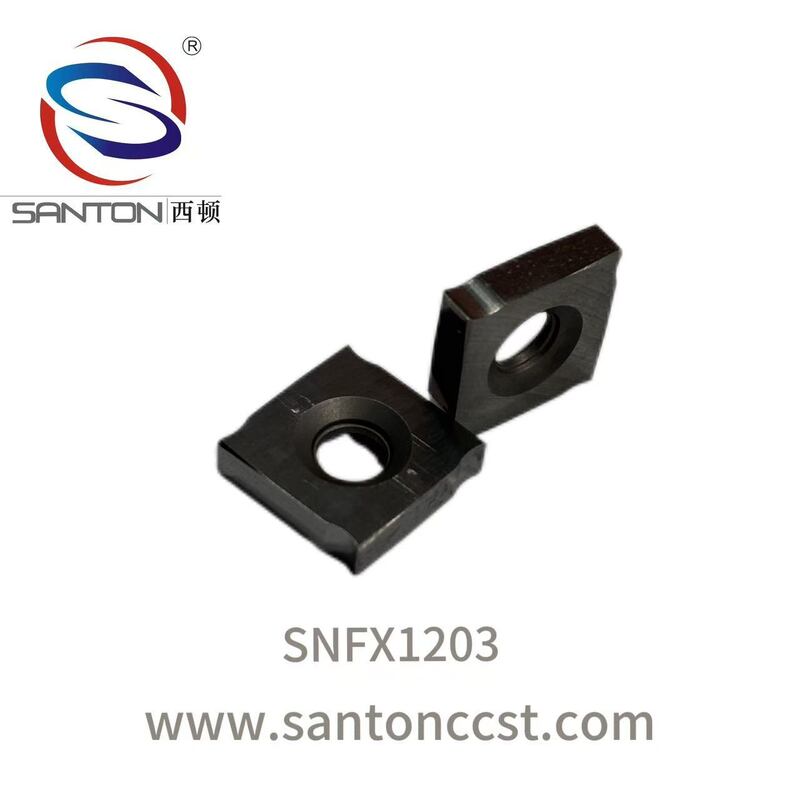

SNFX1203 Three-Edge Milling Insert

High-performance triangular indexable inserts designed for steel, stainless steel, and cast iron applications. Engineered for stability, wear resistance, and efficiency in CNC milling operations.

Product Features

Multi-material compatibility: Suitable for P alloy steel, M stainless steel, K cast iron, H hardened materials, and N aluminum alloys
Optimized slot design: Light cutting capability with smooth chip evacuation for slot milling, side milling, and step machining
High precision manufacturing: Fully ground for stable dimensions and excellent repeatability
Extended tool life: Wear-resistant and heat-resistant coating ideal for high-speed and mass production
Universal compatibility: Works with three-side indexable face mills from various brands

Technical Specifications

Solid carbide CNC tools manufactured through sintering process combining cemented carbide with metallic elements including tungsten, titanium, and tantalum. This advanced composition delivers exceptional heat resistance and superior surface finish quality.

Consistent cutting performance is maintained throughout the tool life, which serves as the primary benchmark for evaluating insert quality in modern production environments.

Grade & Application Specifications

Santon Grade	Density (g/cm³)	TRS (n/mm²)	HRA	Performance & Applications	ISO Code	Other Grade Chain
ST1035	14.35	3300	91.8	Extra fine substrate with high wear resistance and good red hardness. Ideal for semi-finishing and finishing of various cast iron, non-ferrous metals, and non-metallic materials. Excellent for solid carbide hole machining tools.	K30	SK233-1

Certifications

Manufacturer Information

Santon Alloy is a high-tech enterprise specializing in carbide cutting blade research, development, production, and sales. The company provides comprehensive pre-sale, sale, and after-sale services with technology-rich products and application value.

Vertical blade series products represent the core strategic development focus, positioned as "high-end, import replacement" solutions.

Independent Research & Development Materials

ST1015, SK30XF, ST1020, ST1035, ST1040, ST1045, ST1050, ST2030, ST2031, ST2090

OEM Materials

SK231, SK230, SK235, SK410, SK412 - successfully replacing international brands and domestic enterprise materials.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer with 10 years of experience producing and selling carbide inserts.

What are your main products?

Our main products include cemented carbide plates, strips, blanks, saw tips, geological and mining bits, brazed tips, indexable carbide inserts, wear parts, snow plow inserts, tungsten carbide pins, and more.

What are your payment terms?

We accept Western Union, Onetouch, T/T, and L/C. Standard terms: 50% T/T deposit and 50% balance before shipment, or against copy of BL, or L/C at sight.

What is your delivery time?

Typically 25-30 days for production. New molds may require an additional 10 days. We can expedite delivery for urgent requirements.

What is your minimum order quantity (MOQ)?

No MOQ limit. For non-standard products, mold fees apply but are refundable later.

What is your warranty policy?

We offer 100% satisfaction guarantee on all items. If not completely satisfied, we'll replace products or refund fees.

Where are your markets?

Our products are popular in Germany, America, Mexico, India, Russia, Indonesia, Malaysia, Bangladesh, South Africa, and other international markets.

タグ:

VNMG カービッド回転挿入器

カービッド回転挿入物 CVDコーティング

CVDコーティングのVNMG挿入物

商品の詳細

家へ > 製品 >

フレッシングカットカービッド挿入物

Three-edge Wear-resistant CVD Coated Milling Cutter Carbide Inserts for CNC Milling

全カテゴリー

炭化物の製粉の挿入物

炭化タングステンの挿入物

フレッシングカットカービッド挿入物

刃先交換式フライスインサート

超硬インサート

Indexable炭化物の挿入物

高級フードフライリング挿入物

チップブレーカー挿入物

アルミニウムのための炭化物の挿入物

炭化物の回転挿入物

CNCの炭化物の挿入物

木工業の炭化物の挿入物

Three-edge Wear-resistant CVD Coated Milling Cutter Carbide Inserts for CNC Milling

ブランド名:	Santon
モデル番号:	カスタマイズ可能
MOQ:	50
価格:	negotiable
パッケージの詳細:	中プラスチックの箱および外でカートン
支払条件:	L/C、T/T、ウェスタンユニオン

詳細情報

製品説明

詳細情報

起源の場所:

中国

ブランド名:

Santon

証明:

ISO

モデル番号:

カスタマイズ可能

学年:

K05-K10

グルーブタイプ:

荒加工・仕上げ加工

エイリアス:

工業用カッターナイフ

色:

黄金黄色オーダーメイド

用途:

鋼、ステンレス鋼、鋳鉄

サービス:

の後販売法サービス

コーティング:

CVD

製品名:

ステンレス鋼荒加工CNC超硬インサート

最小注文数量:

価格:

negotiable

パッケージの詳細:

中プラスチックの箱および外でカートン

受渡し時間:

15～25営業日

支払条件:

L/C、T/T、ウェスタンユニオン

供給の能力:

1ヶ月あたりの2，000,000

ハイライト:

Three-edge Milling Cutter Carbide Inserts

Wear-resistant Carbide Inserts

CVD Coated CNC Milling Inserts

製品説明

SNFX1203 Three-Edge Milling Insert

High-performance triangular indexable inserts designed for steel, stainless steel, and cast iron applications. Engineered for stability, wear resistance, and efficiency in CNC milling operations.

Product Features

Multi-material compatibility: Suitable for P alloy steel, M stainless steel, K cast iron, H hardened materials, and N aluminum alloys
Optimized slot design: Light cutting capability with smooth chip evacuation for slot milling, side milling, and step machining
High precision manufacturing: Fully ground for stable dimensions and excellent repeatability
Extended tool life: Wear-resistant and heat-resistant coating ideal for high-speed and mass production
Universal compatibility: Works with three-side indexable face mills from various brands

Technical Specifications

Consistent cutting performance is maintained throughout the tool life, which serves as the primary benchmark for evaluating insert quality in modern production environments.

Grade & Application Specifications

Santon Grade	Density (g/cm³)	TRS (n/mm²)	HRA	Performance & Applications	ISO Code	Other Grade Chain
ST1035	14.35	3300	91.8	Extra fine substrate with high wear resistance and good red hardness. Ideal for semi-finishing and finishing of various cast iron, non-ferrous metals, and non-metallic materials. Excellent for solid carbide hole machining tools.	K30	SK233-1

Certifications

Manufacturer Information

Vertical blade series products represent the core strategic development focus, positioned as "high-end, import replacement" solutions.

Independent Research & Development Materials

ST1015, SK30XF, ST1020, ST1035, ST1040, ST1045, ST1050, ST2030, ST2031, ST2090

OEM Materials

SK231, SK230, SK235, SK410, SK412 - successfully replacing international brands and domestic enterprise materials.

Frequently Asked Questions

Are you a manufacturer or a trading company?

We are a professional manufacturer with 10 years of experience producing and selling carbide inserts.

What are your main products?

What are your payment terms?

We accept Western Union, Onetouch, T/T, and L/C. Standard terms: 50% T/T deposit and 50% balance before shipment, or against copy of BL, or L/C at sight.

What is your delivery time?

Typically 25-30 days for production. New molds may require an additional 10 days. We can expedite delivery for urgent requirements.

What is your minimum order quantity (MOQ)?

No MOQ limit. For non-standard products, mold fees apply but are refundable later.

What is your warranty policy?

We offer 100% satisfaction guarantee on all items. If not completely satisfied, we'll replace products or refund fees.

Where are your markets?

Our products are popular in Germany, America, Mexico, India, Russia, Indonesia, Malaysia, Bangladesh, South Africa, and other international markets.
